WEBRA Racing 61F C Item number 1030 & 1030C

Webra Racing 61F & 61 FC A = 41,00 mm B = 25,00 mm C = 96,00 mm D = 52,00 mm E = 103,00 mm WEBRA Racing 61F C displacement 9.95 ccm / .61 cu in power PS / KW2.30 /1.70 rpm 2500 - 18000 bore stroke 24.00mm 22.00mm weight 445 grams porting Schnuerle ball bearing front and rear piston/cylinder ABC cylinder brass crankshaft thread m8x1.25   Accessory Items     carburetor 1030/216 tuned pipe 1100/230 engine mount 3723 3730 glow plug 4303 prop 11x6 12x8

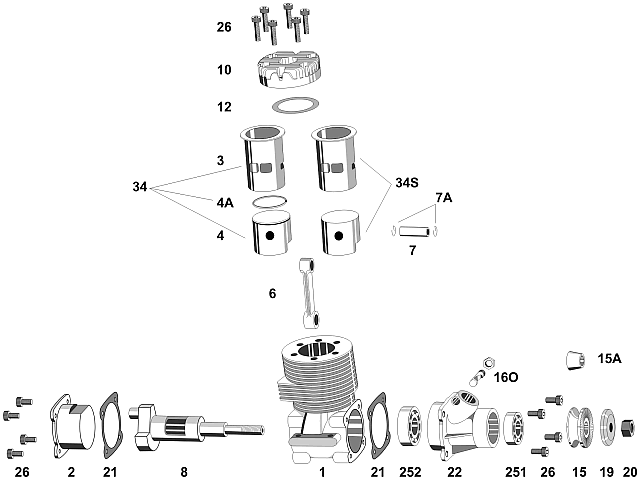

Replacement Parts Racing 61F C 1030c
page under construction

spare parts 1030 1030c crankcase 1030/1 1036/1 rear cover 1027/2 1027/2 liner set (ABN) 1036/34S cylinder linder 1030/3 piston 1030/4 piston ring 1030/4A liner set (ring) 1030/34 connecting rod 1024/6 1024/6 wrist pin 1030/7 1030/7 wrist pin clips 1024/7a 1024/7a crankshaft 1030/8 1030/8 cylinder head 1030/10 1030/10 head shim 1024/12 1024/12 draw bar 1030/16o 1030/16o collet 1024/15a 1024/15a prop driver 1024/15 1024/15 prop washer 1033/19 1033/19 prop nut 1037/20 1037/20 set of gaskets 1024/21 1024/21 front housing 1030/22 1030/22 ballbearing front 1020/251 1020/251 ballbearing rear 1024/252 1024/252 screw set 1024/26 1024/26 carburettor TN II 1020/216 carburettor Promix 1030/116
